Set of 4 Table Corner Brackets, Fixings and Screws

Top Level > 6. Miscellaneous Fixings

Set of 4 Table Corner Brackets, Fixings and Screws
  • Set of 4 Table Corner Brackets, Fixings and Screws
  • Set of 4 Table Corner Brackets, Fixings and Screws

  • Set of 4 Table Corner Brackets, Fixings and Screws

  • Set of 4 Large 70mm Braces + Fixings Screws etc. for Table Legs
  • £7.50

:  at  £7.50  each

37 in stock.

• For attaching table legs to table frame
• Tables designed to make use of corner braces can be stored,
packed and transported in knock-down form

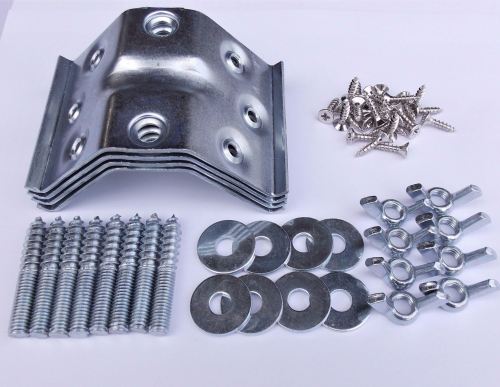

Set includes - 4 x Brackets - 70mm width x 67mm x 67mm
Galvanised steel
8 x Fixing Bolts Zinc plated - 50mm x M8
8 x Wing Nuts - M8
8 x Washers Zinc plated - 24mm x 2mm x M8
24 x Screws -  Csk head Wood Screws Ø4.0 x 17mm
Nickel plated
•
This brace has six 5mm screw holes 45mm apart centre to centre and one in the middle
And two central 8mm bolt holes 52mm apart centre to centre.


Dimensions are as in the diagram in millimetres

Supplied as a complete set for immediate use

Weight per set 760g (0.760kg)
